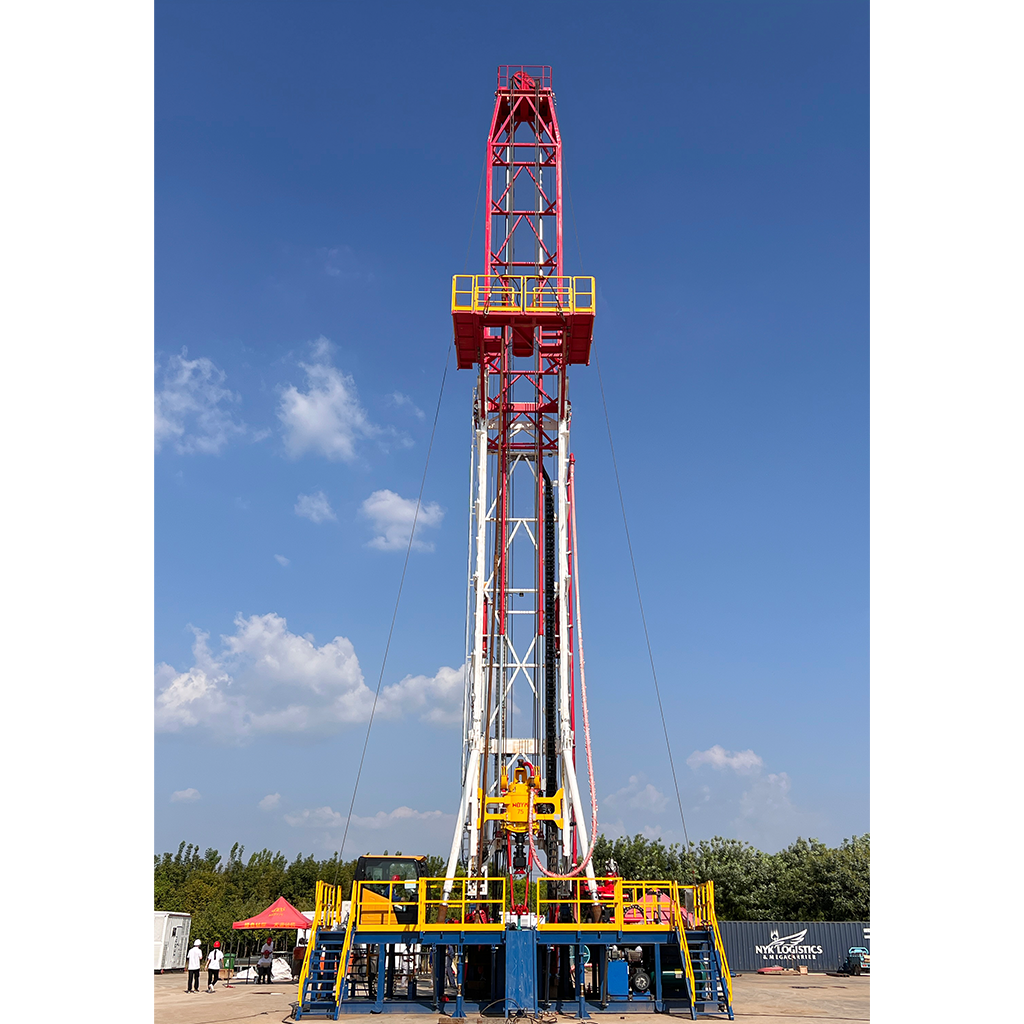

Modular Electric Drive Water Source Top Drive Drilling Rig

The Modular Electric Drive Water Source Top Drive Drilling Rig is a compact electric drilling system developed for water well drilling, shallow oil & gas wells, geothermal projects, coal mine exploration, and geological drilling. By integrating a top drive drilling system, permanent magnet synchronous motor direct drive, and variable frequency control, the rig delivers precise drilling performance, high transmission efficiency, and reduced energy consumption.

Unlike conventional rotary table rigs, this drilling rig utilizes a top drive system that provides continuous drill string rotation, reducing pipe connection time while improving drilling accuracy and operational safety. Its modular construction, telescopic mast, and compact footprint make transportation, installation, and relocation significantly easier, especially in remote or environmentally sensitive locations.

The rig is equipped with intelligent electrical control, hydraulic handling devices, and digital monitoring systems, ensuring efficient drilling operations while minimizing maintenance requirements and environmental impact.

Applications

• Water well drilling
• Shallow oil & gas drilling
• Geothermal exploration
• Coal mine drilling
• Geological investigation
• Core drilling
• Remote drilling operations

Key Advantages

• Permanent magnet direct-drive top drive
• High-efficiency electric drive system
• Variable frequency speed regulation
• Compact modular structure
• Rapid mobilization and installation
• Low operating noise
• Reduced energy consumption
• Digital monitoring and intelligent control
