The Series 10 Sucker Rod Overshot is specifically designed for internal
fishing operations involving sucker rods, couplings, and tubular fish inside

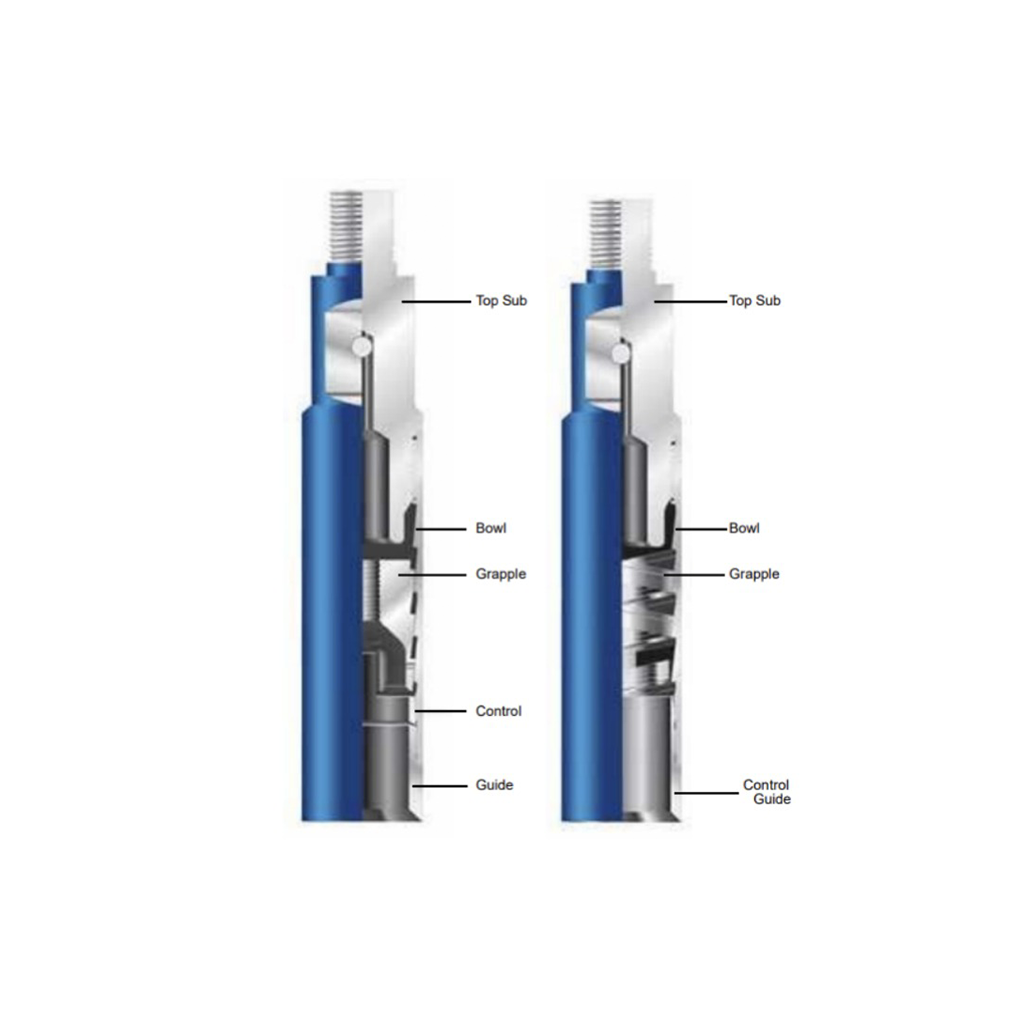

tubing strings. The tool consists of four main components:
- Top Sub
- Bowl
- Grapple
- Guide
Depending on the fish size and operational
requirements, the overshot can be equipped with either:
- Basket Grapple
- Spiral Grapple
The tool is designed for simple and efficient operation. Both engaging and
releasing procedures are performed through controlled right-hand rotation of
the fishing string, allowing easy fish capture and release during downhole
operations.
During engagement, the overshot is lowered slowly over the fish while
rotating to the right, allowing the grapple system to securely engage the fish.
For releasing operations, downward force is applied to release the grapple
grip, followed by slow right-hand rotation while pulling upward.
Manufactured with high-strength materials and precision machining, GREAT
Series 10 Overshots provide reliable fishing performance, operational
flexibility, and extended service life in demanding well intervention
environments.
Key Features
- Professional internal fishing tool for
sucker rod retrieval
- Interchangeable Basket Grapple and Spiral
Grapple systems
- Simple right-hand rotation operation
- Reliable fish engagement and release
mechanism
- Slim Hole (S.H.) and Full Strength (F.S.)
configurations available
- Durable high-strength construction
- Suitable for tubing string fishing
applications
- Easy maintenance and field operation
Applications
- Sucker Rod Fishing Operations
- Coupling Retrieval
- Tubular Fishing Inside Tubing Strings
- Well Workover Operations
- Downhole Intervention Services
- Production String Recovery Operations
Operating Procedure
Engaging a Fish
- Lower the overshot slowly toward the fish
- Rotate the fishing string to the right
- Allow the grapple to engage the fish
securely
- Release right-hand torque
- Pull upward to retrieve the fish
Releasing a Fish
- Apply downward force to release grapple
tension
- Slowly rotate to the right while lifting
- Continue lifting until the overshot clears the fish
Advantages
- Easy operation with minimal handling
complexity
- Fast fish engagement and release process
- Reliable gripping performance for various
fish sizes
- Reduced operational downtime
- Interchangeable grapple flexibility
- Suitable for slim hole and standard fishing
operations
- Durable performance in demanding well
conditions
- Improved operational efficiency during workover activities
